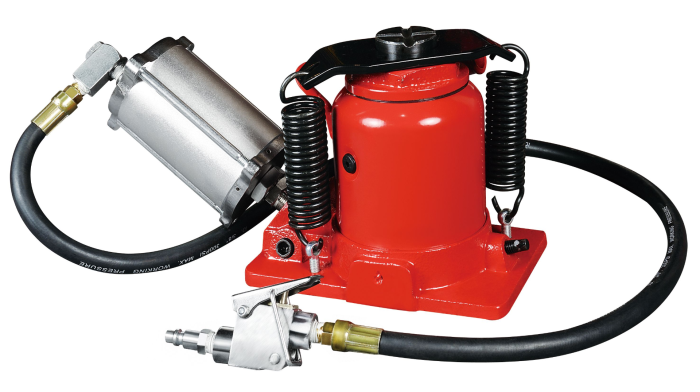

Astro Pneumatic 5304A 20 Ton Low Profile Air/Manual Bottle Jack

The Astro Tools 5304A 20 Ton Low Profile Air/Manual Bottle Jack is designed for operating either manually or pneumatically. The air hose can swivel in any direction of connection from the air source. This item is fitted with a safety valve to prevent against overloading, and the extension screw gives added height when needed. This item is speedy and versatile, and since it is a hydraulic bottle jack, it is far quicker than using conventional hand operated equipment. It is also much safer since air power permits one-handed operation and enables the user to watch the load more closely. The heavy duty design makes this item ideal for a wide variety of automotive, truck, industrial, and construction work.

Features:

• Designed for operating either manually or pneumatically
• Air hose can swivel in any direction of connection from air source
• Fitted with a safety valve against overloading
• Extension screw gives added height when necessary
• Speedy and versatile air/hydraulic bottle jack is far quicker than using conventional hand operated hydraulic equipment and much safer since air power permits one-handed operation and enables user to watch load more closely
• Heavy duty design makes them ideal for a wide variety of automotive truck industrial and construction work

Specifications:

• Capacity: 20T
• Minimum Height: 7" (178mm)
• Maximum Height: 12.75" (323mm)
• Lift: 3-3/8" (85mm)
• Screw: 2-3/8" (60mm)
• Air Pressure: 100-120psi
• Air Volume: 7CFM
• Net Weight: 29.10lbs (13.2kg)
• Piston Diameter: 2”
