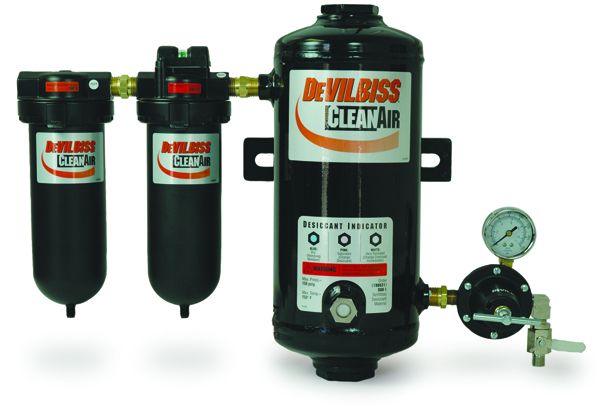

DAD-500 Desiccant Air Drying System

$1,923.64
In stock
SKU
DELDAD500

The DAD-500 system is an industry leader among air dryer systems. Remove oil, water, dirt and other contaminants from your compressed air to allow a high quality finish job.

Stock: 6

WARNING: Cancer and Reproductive Harm

The DAD-500 system is an industry leader among air dryer systems. Remove oil, water, dirt and other contaminants from your compressed air to allow a high quality finish job. Even the tiniest of particles can have an affect on how your current paint job will turn out. With routine cleaning and maintenance, you can achieve a high quality finish every time.

Features:

  • Avoids costly redos with the dryer system
  • Eliminate moisture and dirt in air lines
  • Includes a 1/2" ball valve shutoff for easy maintenance

Specifications: DAD-500 Air Dryer System:

13-0041 (HAF-502) Water Separator Filter Specifications

  • Air Inlet and Outlet ¬Ω" NPT(F)
  • Flow Capacity 100 CFM
  • Maximum Operating Pressure 150 PSIG (10.3 Bar)
  • Maximum Temperature 150°F (65.6°C)
  • Automatic Drain Standard
  • Filter 5 micron

HAF-505 Oil Coalescing Filter Specifications

  • Air Inlet and Outlet ¬Ω" NPT(F)
  • Air Flow Capacity 55 CFM
  • Maximum Operating Pressure 150 PSIG (10.3 Bar)
  • Maximum Temperature 150°F (65.6°C)
  • Automatic Mechanical Drain Standard
  • Pressure Differential Indicator Standard
  • Filter 0.01 micron

Desiccant Air Dryer Specifications

  • Dryer Air Inlet and Outlet ¬Ω" NPT(F)
  • Flow Capacity 25 CFM
  • Maximum Operating Pressure 150 PSIG (10.3 Bar)
  • Maximum Temperature 150°F (65.6°C)
  • Humidity Indicator Standard Dryer
  • Water Vapor Removal And Dryer -40ÀöF Dew Point

HAR-507 Air Regulator Specifications

  • Inlet 3/8" NPT(F)
  • Outlet ¬º" NPT(F) (3 each)
  • Flow 60 CFM
  • Maximum Operating Pressure 150 PSIG (10.3 Bar)
  • Maximum Temperature 120°F (48.9°C)

VA-595 Main Air Supply Shut Off Valve Specifications (not shown)

  • Air Inlet and Outlet ¬Ω" NPT(M)
  • Maximum Operating Pressure 175 PSIG (12.0 Bar)
