Dent Fix DF-505BP Bridge Puller for DF-505 Maxi Dent Pulling Station
WARNING: Cancer and Reproductive Harm

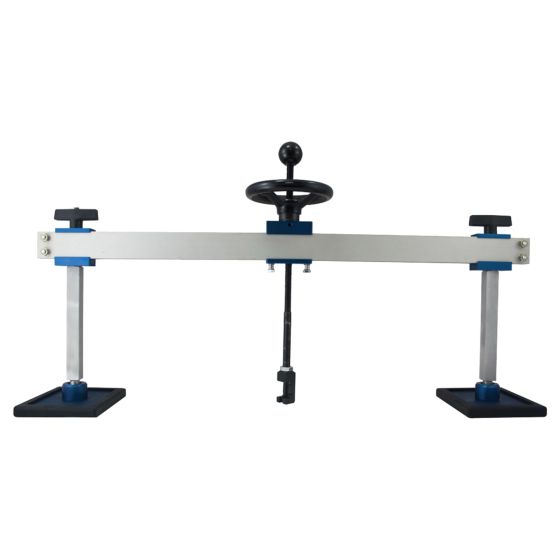

The DF-505BP MAXI Bridge Puller is a great way for Techs to perform controlled panel pulls. The Pull Control Wheel allows the tech to add incremental levels of force and lock the pull in that position. Adjustable legs can be positioned to slide anywhere along the length of the main support bar. Two types of legs are included: one leg with a ball joint and one leg with a hinge. Rubber padded feet protect the paint of the undamaged areas of the vehicle.
Steel (Weld-on or Glue): When using the DF-505 Maxi System you can pull with wiggle wire or weld keys attached to the panel. For the weld keys you will also need the DF-505KEM Magnetic Key Electrode. Simply weld keys (DF-503KF & DF-503KT) in desired location, connect rod through eyelets in the keys, and attached to the Bridge Puller. Bridge can also be used with the Glue Pads/Glue from the DF-GPX Glue Pull Xtreme.Aluminum (Weld-on or Glue): When using an aluminum welder weld M4x12 studs to the panel an attach screw on eyelets to the studs. Install pull rod and bridge puller. Bridge can also be used with the Glue Pads/Glue from the DF-GPX Glue Pull Xtreme.
Features:
- This bridge puller is able to perform steel or aluminum pulls
Includes:
- Standard Leg Set with Pad
- Wheel Puller
- 3 ft Bar
No SDS/TDS file available at this time.
